Need a part you don't see listed on our site? Here you can request a quote on any part available for a YTR9335NYS. Just check the box next to the part or click on the number to the corresponding part in the diagram.

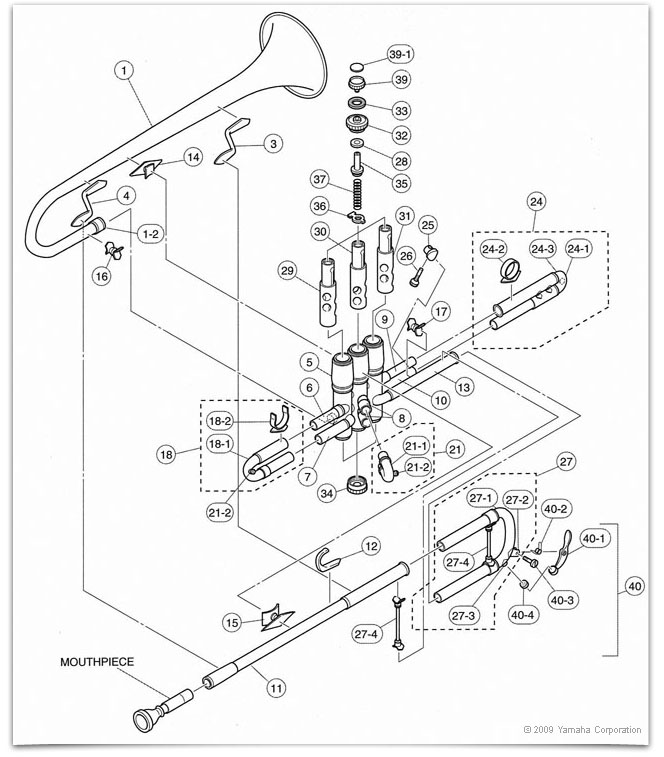

YTR9335NYS

1 - BELL & FERRULE (SILVER-PTD)
2 - BELL FERRULE (SILVER-PTD)
3 - FRONT BELL BRACE (SILVER-PTD)
4 - REAR BELL BRACE (SILVER-PTD)
5 - VALVE CASING ASS'Y (SILVER-PTD)
6 - 1ST VALVE I/S SLIDE & FERRULE
7 - 1ST VALVE OUTSIDE SLIDE
8 - 2ND VALVE OUTSIDE SLIDE
9 - 3RD VALVE I/S SLIDE & FERRULE
10 - 3RD VALVE OUTSIDE SLIDE
11 - MOUTHPIPE ASS'Y (SILVER-PTD)
12 - FINGER HOOK
13 - OUTSIDE TUNING SLIDE LOWER
14 - BRACE, VALVE CASING TO BELL
15 - BRACE, VALVE CASING TO MOUTHPIPE
16 - BRACE, BELL TO 1ST VALVE O/S SLIDE
17 - BRACE, O/S T. SLIDE TO 3RD VALVE O/S
18 - 1ST VALVE SLIDE ASS'Y
18-1 - 2ND VALVE SLIDE CROOK
18-2 - 1ST THUMB HOOK & HOLDER
21 - 2ND VALVE SLIDE ASS'Y
21-1 - 2ND VALVE SLIDE CROOK
21-2 - SLIDE PULL KNOB
24 - 3RD VALVE SLIDE ASS'Y (SILVER-PTD)
24-1 - 2ND VALVE SLIDE CROOK
24-2 - 3RD FINGER RING & HOLDER (SILVER-PTD)
24-3 - SLIDE PULL KNOB
25 - 3RD VALVE SLIDE STOPPER NUT
26 - 3RD VALVE SLIDE STOPPER SCREW
27 - TUNING SLIDE ASS'Y (SILVER-PTD)
27-1 - T.SLIDE CROOK W. HOLDER & NIPPLE
27-2 - T.SLIDE WATER KEY HOLDER
27-4 - TUNING SLIDE BRACE (SILVER-PTD)
28 - SYNTHETIC VALVE STEM WASHER ('07.08-)
29 - PISTON NO.1
30 - PISTON NO.2
31 - PISTON NO.3
32 - TOP VALVE CAP (SILVER-PTD)
33 - SYNTHETIC TOP CAP WASHER ('07.08-)
34 - BOTTOM BALVE CAP (SILVER-PTD)
35 - VALVE STEM L=30.9 NEW
36 - VALVE GUIDE
37 - VALVE SPRING
39 - VALVE BUTTON W. PEARL (SILVER-PTD)
39-1 - VALVE BUTTON PEARL
40-1 - TUNING SLIDE WATER KEY
40-2 - M'PIPE WATER KEY SPRING
40-3 - WATER KEY SCREW (SILVER-PTD)
40-4 - WATER KEY CORK
